MODEL GDW-01

HEDLEY HIGHVOLT

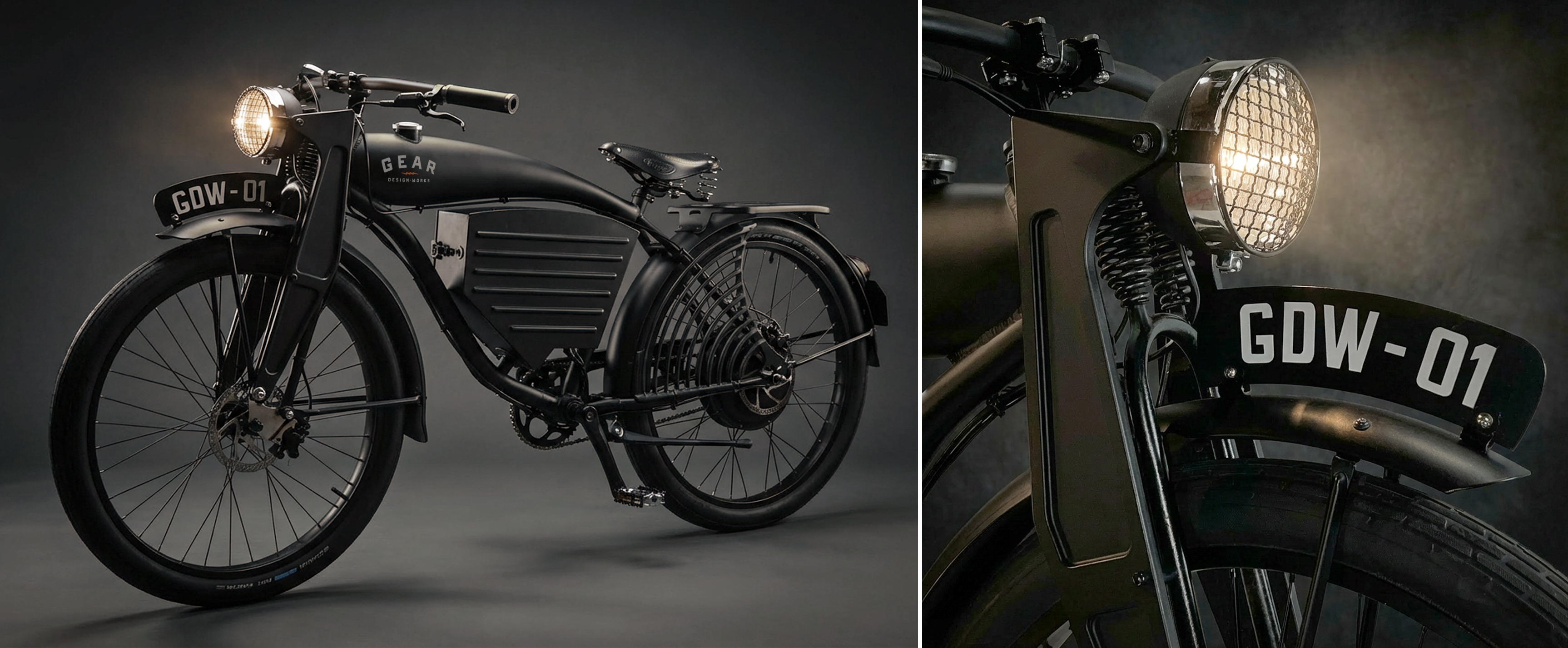

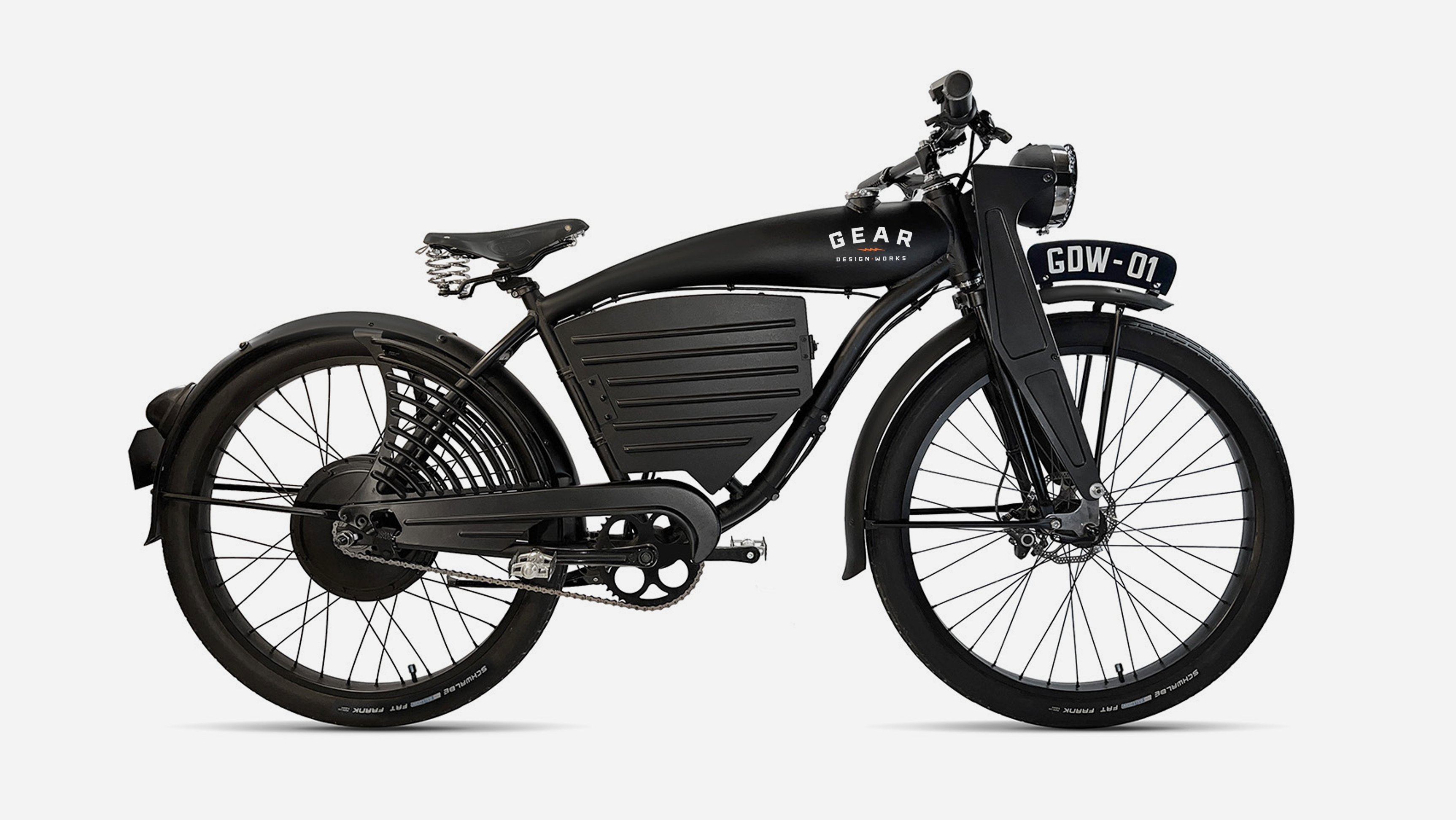

The one that started it all. Inspired by British motorcycles of the 1930s, this was my first electric bike build, from 2013. It combines new materials, custom designs, found objects, and vintage parts into a single, original machine.

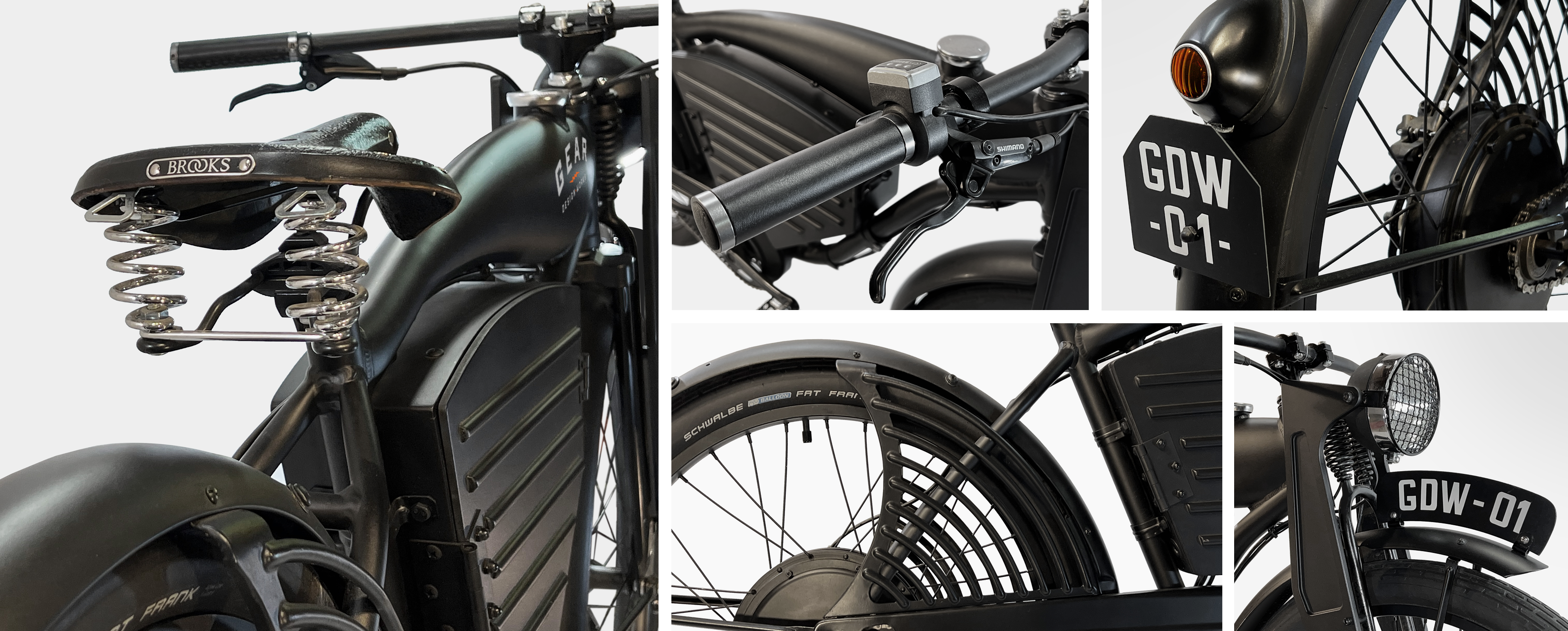

The base frame comes from a gas-powered bicycle, onto which I added a hand-crafted wooden battery and control box. Custom aluminum fork spats were designed to hold the headlight, while front and rear fender plates complete the look. The skirt and chain guard are salvaged from a 1930s Elgin girl’s bike, and the rear light comes from a BMW-style Ural motorcycle sidecar. Shown with and without rear fender rack installed.

Every detail of this bike tells a story: Bridging past and present in a modern tribute to classic British design.

Price:

N/A

Specifications

FRAME / WEIGHT
Size: One size (Fits 5'3" - 6' 3")
Frame: Aluminum alloy
Total Weight: 75 lbs
Suspension: Springer Front Fork with retro-style headlight spats
Color: Matte Black
DRIVE TRAIN
Motor: 1000w Rear Hub
Crankset: Schwinn 39T Single Speed
Freewheel: 30T Single-speed
COMPONENTS
Brake Levers & Brakes: Shimano MT200 Hydraulic disc brake set
Brake Discs: 185mm front & rear
Handlebars: 7/8" (22mm) flat 800mm drag bar / 12 degree backsweep
Grips: 7/8" (22mm) Black leatherette
Stem: Vintage BMX double-clamp
Saddle: Brooks B67 Black leather retro-style spring saddle
Pedals: MKS Sylvan Stream
Headlight: 5" bucket with incandescent bulb & rock guard
Taillight: Vintage-style fender mounted for Ural/Dnepr sidecar
Battery Box: Handmade wood
WHEELS
Front Hub: Quick release
Rear Hub: 135mm 1000W Bafang Hub Motor
Rims: 26 x 2.125
Tubs: 26 x 2.4 with thorn resistant stips installed
Spokes: Stainless steel
Tires: 26 x 2.35 Schwalbe Fat Frank
BATTERY / FEATURES
Battery: 48v 20ah Lithium
Motor: 1000w Rear Hub
Torque: 70-80 Nm
Maximum Speed: 30 Mph / 50Km/h
Charging Time: 5-6 Hours
CLASSIFICATION
CA E-bike Classification: Class 2
