MODEL GDW-06
MOTO-G

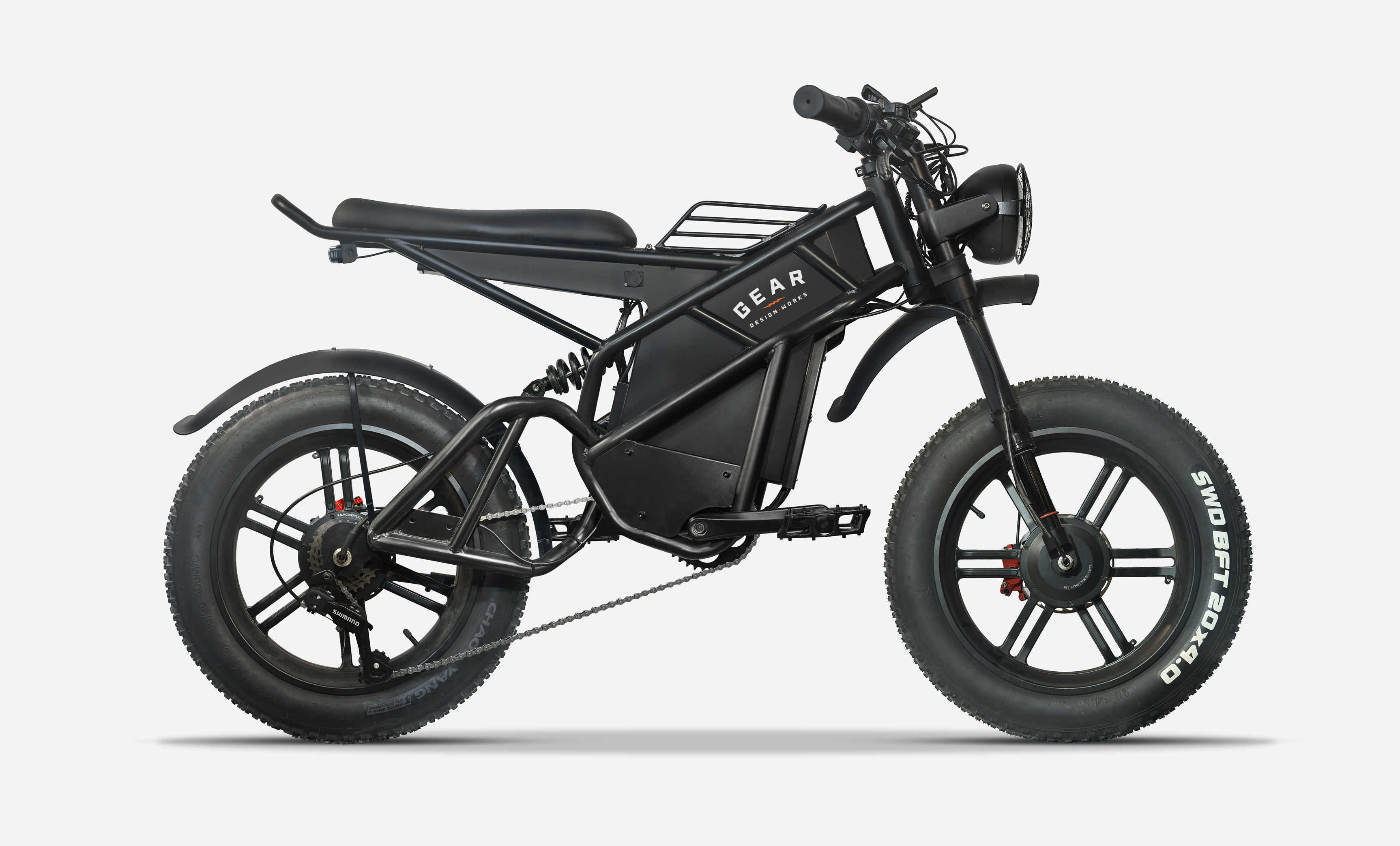

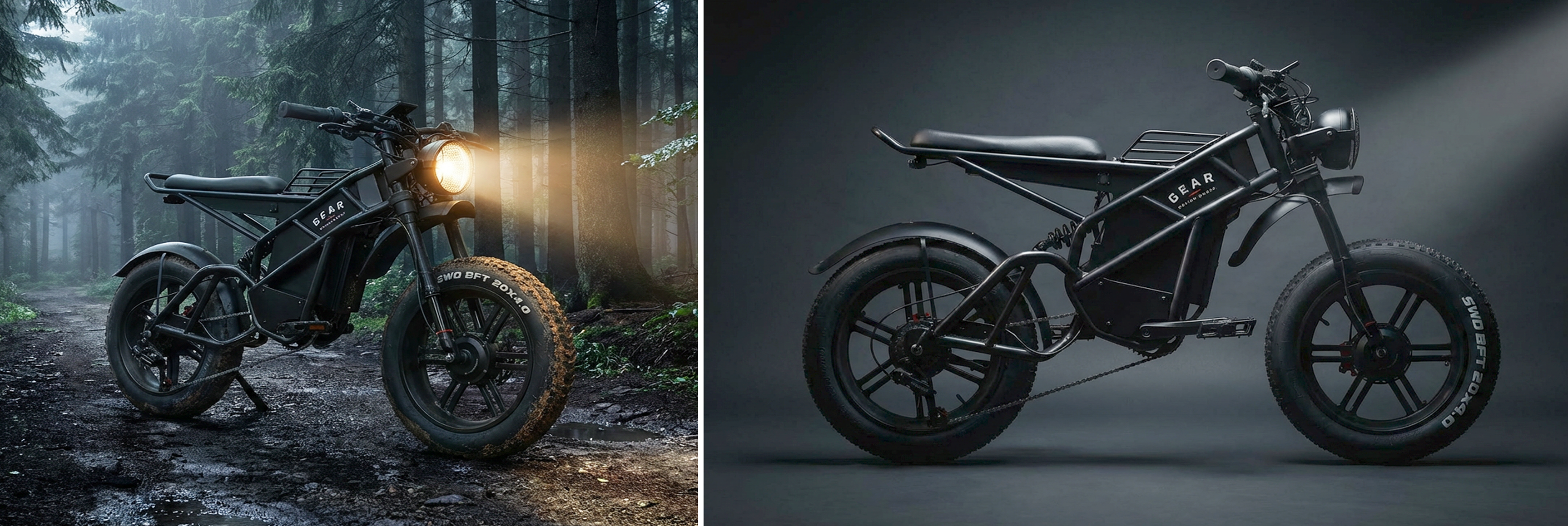

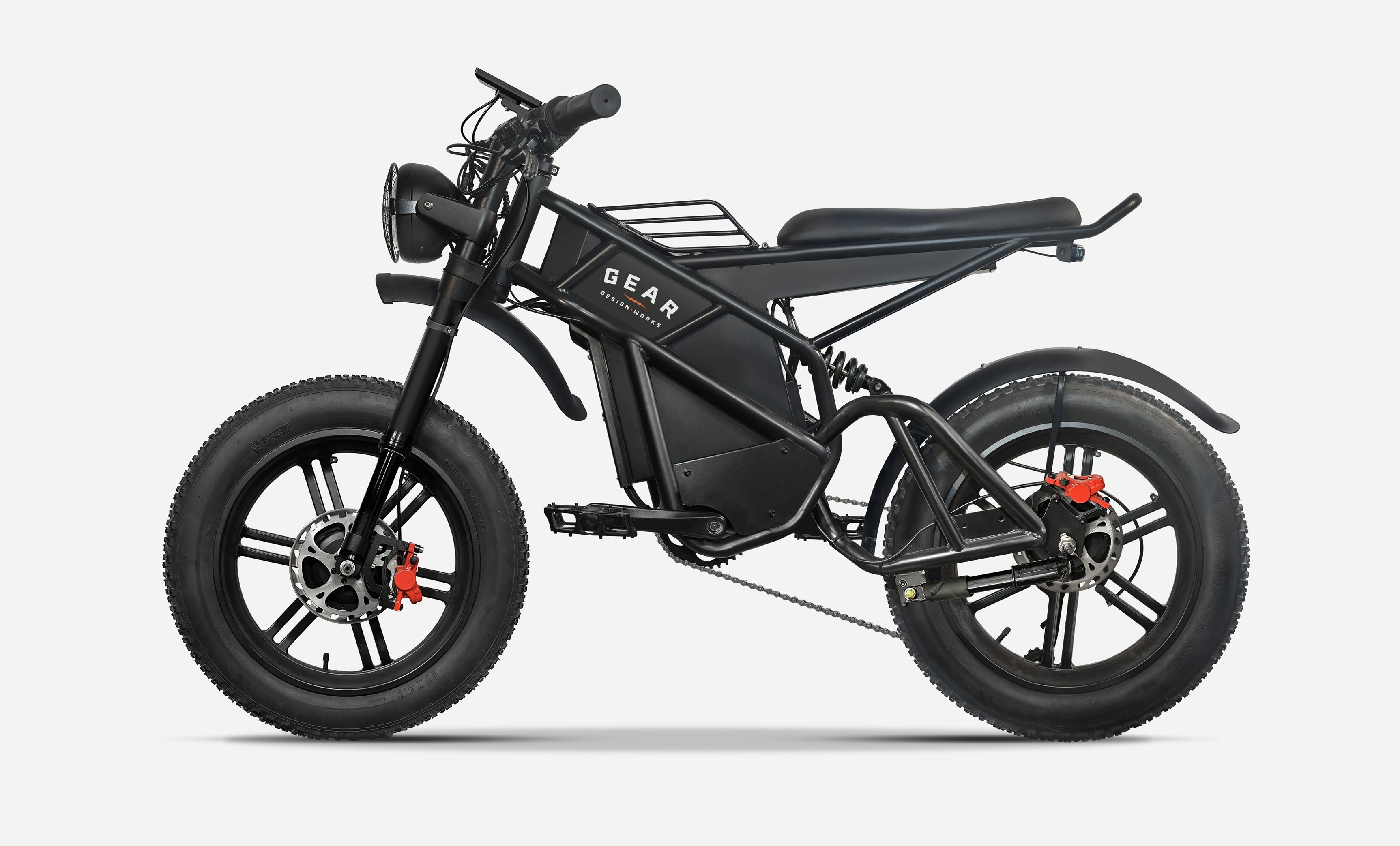

A mountain biker at heart, I wanted to build a bike that is just at home on dirt trails as it is on streets. Technically, a modified rather than custom bike: I took an existing model not widely marketed in the US and stripped it down. This one is a bit more stock than my previous bikes, so potentially open to selling. The base is a new Dual motor and suspensioned
Price:
TBD
CONTACT ME!Specifications
FRAME / WEIGHT
Size: One size (Fits 5'8" - 6' 5")
Frame: Aluminum alloy
Total Weight: 88 lbs
Suspension: Inverted Oil-dampened front fork- 90mm Travel
Color: Satin Black
DRIVE TRAIN
Pedal Assist: 5 Modes
Throttle: Included
Motor: Bafang front and rear 1000w Rear Hub
Crankset: 170mm ProWheel 39T Single Speed
Shift Lever: Shimano Tourney SL-TX30 (7-Speed)
Derailleur (Rear) Shimano RD-TZ31-GS 6/7 Speed Rear Derailleur, Medium Cage
Freewheel: 7-Speed Shimano 14-34T
COMPONENTS
Brake Levers: Magura MT5e hydraulic brakes with 4-Piston Calipers & motor cut-off
Brake Discs: 203mm front / 185mm rear
Handlebars: 7/8" (22mm) flat 800mm drag bar / 12 degree backsweep
Stem: 7/8" (22mm) Moto direct-nount double-clamp
Headset: 1-1/8" (44mm) ZTTO Headset kit with semi-integrated bearings, Aluminium Alloy
Pedals: Wellgo Black Platform Pedals K79 9/16” Non-Slip Pins
Headlight: 5" XXX Lumens LED
Taillights: Brake lever activated rear light
WHEELS
Front Hub: 750W Bafang Hub Motor
Rear Hub: 750W Bafang Hub Motor
Rims: 20 x 4
Tubs: 20 x 4 with thorn resistant stips installed
Spokes: Stainless steel
Tires: 20 x 4 Chao Yang Moped tires
BATTERY / FEATURES
Battery: 48v 40ah Lithium
Motor: Bafang 750w Front and Rear Hub
Torque: 70-80 Nm

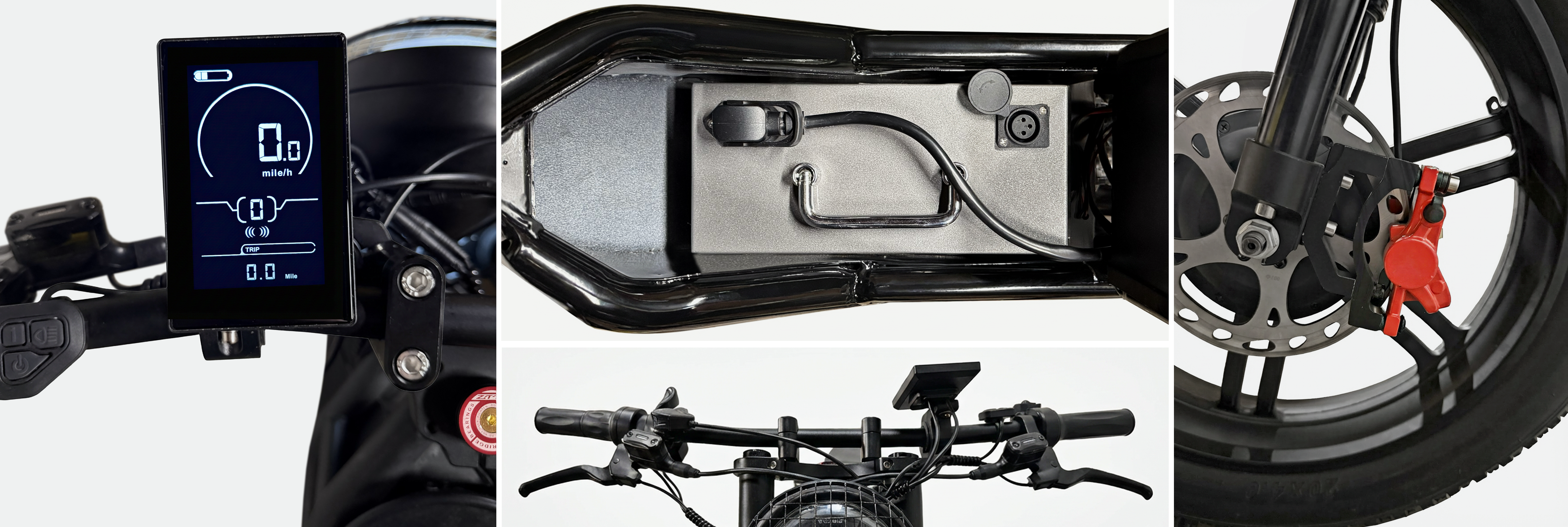

Display: Digitech BC352
Maximum Speed: 30 mph / 50 km/h
Maximum Range: 30 km - 60 km
Charging Time: > 3 Hours
CLASSIFICATION
